SPECIFICATIONS
-
Current Rating: 5A AC, DC
-
Voltage Rating: 250V AC, DC
-
Temperature Range: -25°C~+85°C (Including temperature rise)
-
Contact resistance: Initial Value /10mΩ max.
-
Insulation Resistance: 1,000mΩ min.
-
Withstanding Voltage: 1,500V AC/minute

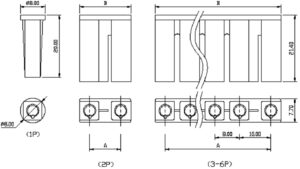

| CIRCUITS | PART NO. | A (mm) | B (mm) | Q’ty Bag |
|---|---|---|---|---|
| 1 | LV-01 | – | – | 1,000 |
| 2 | LV-02 | 10.0 | 16.5 | 1,000 |
| 3 | LV-03 | 18.0 | 24.5 | 500 |
| 4 | LV-04 | 26.0 | 32.5 | 500 |
| 5 | LV-05 | 34.0 | 40.5 | 300 |
| 6 | LV-06 | 42.0 | 48.5 | 300 |
