Electrical & Mechanical Specifications
-
Current Rating: 1AMP DC
-
Contact Resistance: 30mΩ max at 6V DC 0.3A
-
Insulation Resistance: 1,000mΩ min at 500V DC
-
Dielectric Withstanding Voltage: 500V AC of one minute
-
Wire Size: Flat Cable for IDC 1.27mm spacing, AWG #28–30

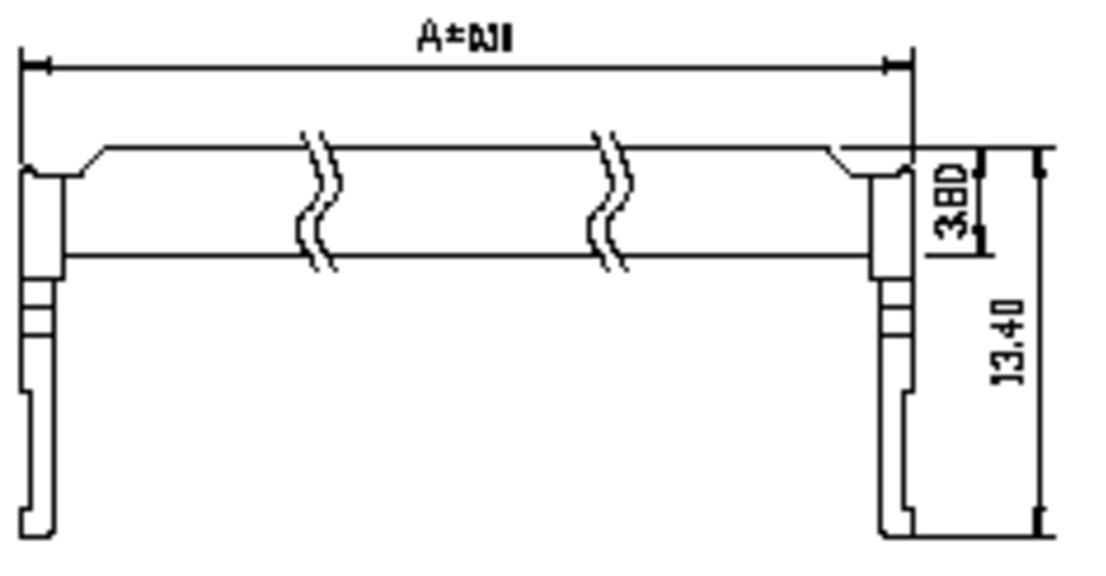

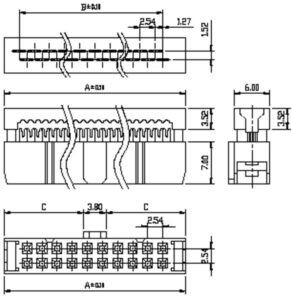

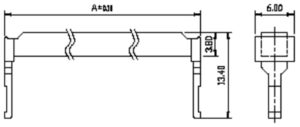

| CIRCUITS | PART NO. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 8 | I-S-8-N | 15.28 | 7.62 | 5.74 |
| 10 | I-S-10-N | 17.82 | 10.16 | 7.01 |
| 14 | I-S-14-N | 22.90 | 15.24 | 9.55 |
| 16 | I-S-16-N | 25.44 | 17.78 | 10.82 |
| 20 | I-S-20-N | 30.52 | 22.86 | 13.36 |
| 24 | I-S-24-N | 35.60 | 27.94 | 15.90 |
| 26 | I-S-26-N | 38.14 | 30.48 | 17.17 |
| 30 | I-S-30-N | 43.22 | 35.56 | 19.71 |
| 34 | I-S-34-N | 48.30 | 40.64 | 22.25 |
| 40 | I-S-40-N | 65.92 | 48.26 | 31.06 |
| 50 | I-S-50-N | 81.62 | 60.96 | 32.41 |
| 60 | I-S-60-N | 81.32 | 73.66 | 38.76 |
| 64 | I-S-64-N | 86.40 | 78.74 | 41.30 |
