Specifications
-
Current Rating: 1A AC/DC
-
Insulation Resistance: 1,000 MΩ min
-
Withstand Voltage: 500V AC/min
-
Temperature Range: -55°C ~ +105°C

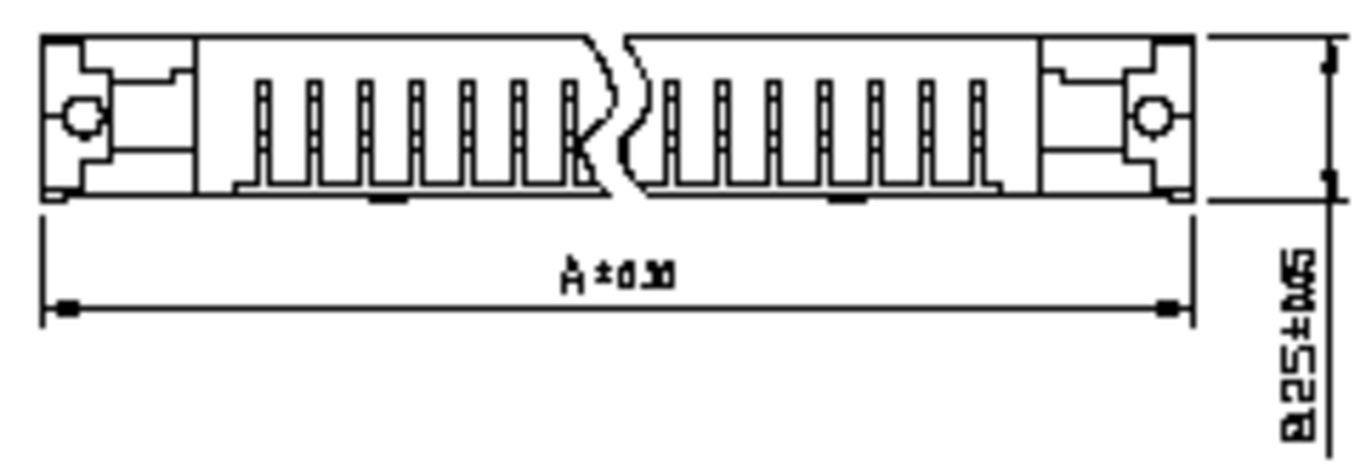

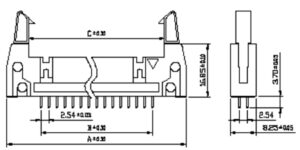

| CIRCUITS | PART NO. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 10 | I-J-10-N | 31.90 | 10.16 | 18.00 |
| 12 | I-J-12-N | 34.60 | 12.70 | 20.54 |
| 14 | I-J-14-N | 36.98 | 15.24 | 23.08 |
| 16 | I-J-16-N | 39.52 | 17.78 | 25.62 |
| 20 | I-J-20-N | 44.60 | 22.86 | 30.70 |
| 24 | I-J-24-N | 49.68 | 27.94 | 35.78 |
| 26 | I-J-26-N | 52.15 | 30.48 | 38.32 |
| 30 | I-J-30-N | 57.40 | 35.56 | 43.40 |
| 34 | I-J-34-N | 62.38 | 40.64 | 48.48 |
| 40 | I-J-40-N | 70.00 | 48.26 | 56.10 |
| 50 | I-J-50-N | 82.70 | 60.96 | 68.80 |
| 60 | I-J-60-N | 95.60 | 73.66 | 81.82 |
| 64 | I-J-64-N | 100.70 | 78.74 | 86.90 |
