SPECIFICATIONS
-
Current Rating: 3A AC, DC
-
Voltage Rating: 250V AC, DC
-
Temperature Range: -25°C ~ +85°C (Including temperature rise)
-
Contact Resistance:
-
Initial Value: 10mΩ Max.
-
After Environmental Testing: 30mΩ Max.
-
-
Insulation Resistance: 500MΩ Min
-
Withstand Voltage: 1,000V AC/Minute
-
Applicable Wire: AWG #24–26

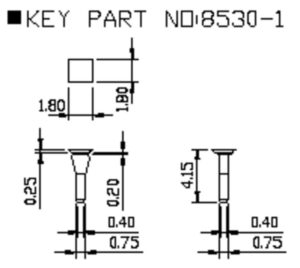

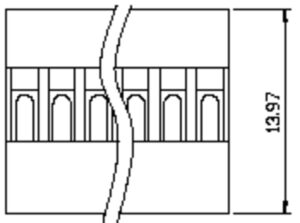

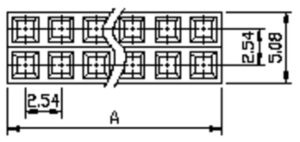

| POLES | PART NO. | DIM. A | POLES | PART NO. | DIM. A | POLES | PART NO. | DIM. A |
|---|---|---|---|---|---|---|---|---|
| 4 | 8531H-02 | 5.08 | 30 | 8531H-15 | 38.10 | 56 | 8531H-28 | 71.12 |
| 6 | 8531H-03 | 7.62 | 32 | 8531H-16 | 40.64 | 58 | 8531H-29 | 73.66 |
| 8 | 8531H-04 | 10.16 | 34 | 8531H-17 | 43.18 | 60 | 8531H-30 | 76.20 |
| 10 | 8531H-05 | 12.70 | 36 | 8531H-18 | 45.72 | 62 | 8531H-31 | 78.74 |
| 12 | 8531H-06 | 15.24 | 38 | 8531H-19 | 48.26 | 64 | 8531H-32 | 81.28 |
| 14 | 8531H-07 | 17.78 | 40 | 8531H-20 | 50.80 | 66 | 8531H-33 | 83.82 |
| 16 | 8531H-08 | 20.32 | 42 | 8531H-21 | 53.34 | 68 | 8531H-34 | 86.36 |
| 18 | 8531H-09 | 22.86 | 44 | 8531H-22 | 55.88 | 70 | 8531H-35 | 88.90 |
| 20 | 8531H-10 | 25.40 | 46 | 8531H-23 | 58.42 | 72 | 8531H-36 | 91.44 |
| 22 | 8531H-11 | 27.94 | 48 | 8531H-24 | 60.96 | 74 | 8531H-37 | 93.98 |
| 24 | 8531H-12 | 30.48 | 50 | 8531H-25 | 63.50 | 76 | 8531H-38 | 96.52 |
| 26 | 8531H-13 | 33.02 | 52 | 8531H-26 | 66.04 | 78 | 8531H-39 | 99.06 |
| 28 | 8531H-14 | 35.56 | 54 | 8531H-27 | 68.58 | 80 | 8531H-40 | 101.60 |
