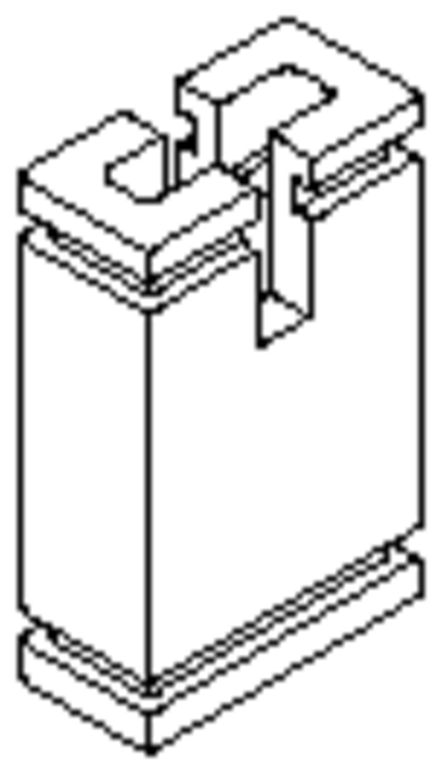

(Two Circuit Shunt Connector)

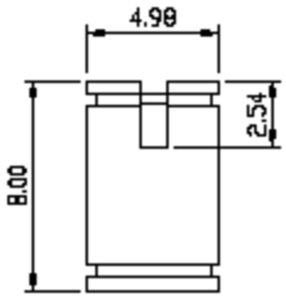

🔲 HOUSING PART NO: 8014
Double tuning fork type contact assure high reliability
Cost effective alternative to DIP switches
All side and end stackable
Flexible and easy applied – No soldering

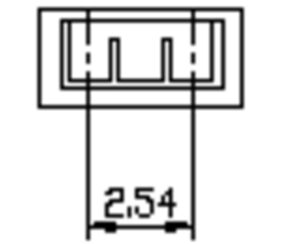

Mate with 2.54mm Pin Headers
Current Rating: 3A
Insulation Resistance: 5000M Ω Min.
Dielectric Withstanding: 600V AC,DC
Contact Resistance: 20m Ω Max.
Operating Temperature: -40°C to +105°C
Contact Material: Phosphor Bronze
Contact Plating: Gold/Tin over Nickel
Insulation Material: Glass Filled Polyester
