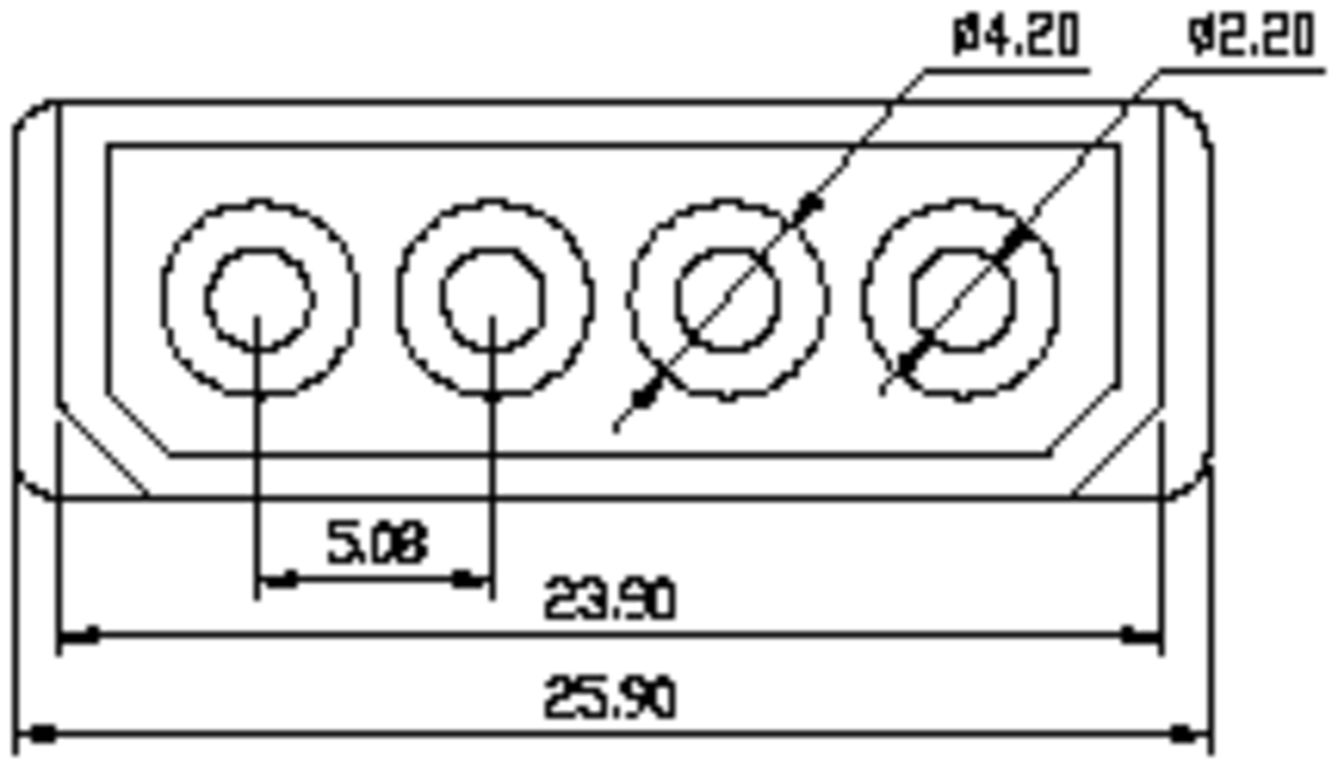

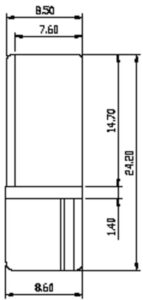

■ CONNECTOR PART NO: 625M
Material: Nylon 66, UL 94V-2
Pitch: 5.08mm
Voltage rating: 250V. AC
Current rating: 10 amps vertical
We now have 2 pin & 4 pin available and customer’s design are also welcomed.
Accepts Terminal: 2634BS-2 / 2634A-BS-2
Voltage rating: 250V AC, DC
Current rating: 6A
Withstand voltage: 1,500 V AC /minute
Insulation resistance: 1,000M Ω min
Temperature range: -25°C ~ +120°C
Applicable P.C.B. thickness: 0.8~1.6mm
Applicable P.C.B. Hole dia.: Ø0.9mm ±0.05
