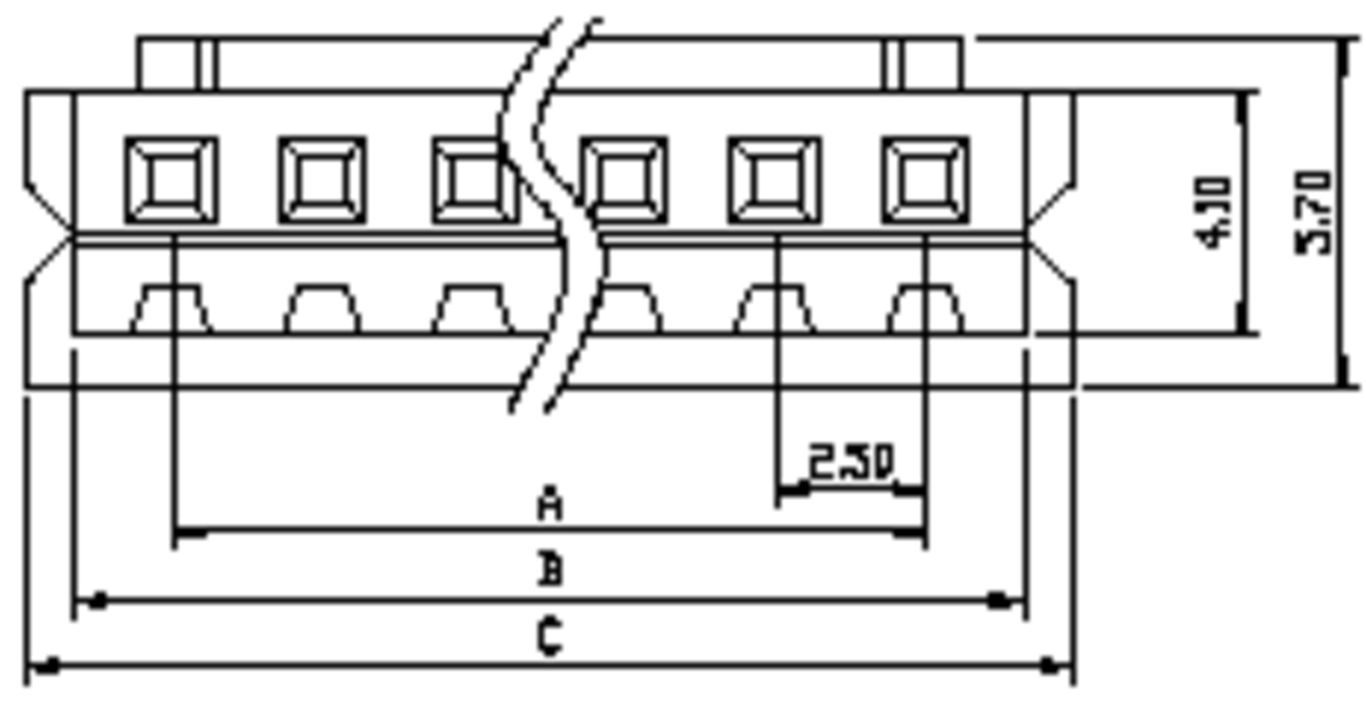

| CIRCUITS | PART NO. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 2 | 622H-02 | 2.5 | 5.7 | 7.3 |
| 3 | 622H-03 | 5.0 | 8.2 | 9.8 |
| 4 | 622H-04 | 7.5 | 10.7 | 12.3 |
| 5 | 622H-05 | 10.0 | 13.2 | 14.8 |
| 6 | 622H-06 | 12.5 | 15.7 | 17.3 |
| 7 | 622H-07 | 15.0 | 18.2 | 19.8 |
| 8 | 622H-08 | 17.5 | 20.7 | 22.3 |
| 9 | 622H-09 | 20.0 | 23.2 | 24.8 |
| 10 | 622H-10 | 22.5 | 25.7 | 27.3 |
| 11 | 622H-11 | 25.0 | 28.2 | 29.8 |
| 12 | 622H-12 | 27.5 | 30.7 | 32.3 |
| 13 | 622H-13 | 30.0 | 33.2 | 34.8 |
| 14 | 622H-14 | 32.5 | 35.7 | 37.3 |
| 15 | 622H-15 | 35.0 | 38.2 | 39.8 |
