PART NO.6000-1R / 6000-2R

預留位置

PART NO.6000-1R / 6000-2R

.100″ (2.54X2.54 mm) Pin Header for SMT
分類: ,

Features & Benefits

  • The series are excellent for board-to-board stacking

  • Available in single and dual row

  • IR, vapor phase and wave soldering compatible

  • Notches for easy break-off

  • Also, we accept different various type of specifications of Pin Header

文件下載

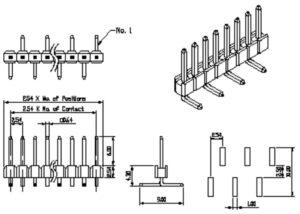

HEADER PART NO: 6000-1R

6000 x7

Pin PARD NO Pin PARD NO Pin PARD NO
2 6000-1R-2 15 6000-1R-15 28 6000-1R-28
3 6000-1R-3 16 6000-1R-16 29 6000-1R-29
4 6000-1R-4 17 6000-1R-17 30 6000-1R-30
5 6000-1R-5 18 6000-1R-18 31 6000-1R-31
6 6000-1R-6 19 6000-1R-19 32 6000-1R-32
7 6000-1R-7 20 6000-1R-20 33 6000-1R-33
8 6000-1R-8 21 6000-1R-21 34 6000-1R-34
9 6000-1R-9 22 6000-1R-22 35 6000-1R-35
10 6000-1R-10 23 6000-1R-23 36 6000-1R-36
11 6000-1R-11 24 6000-1R-24 37 6000-1R-37
12 6000-1R-12 25 6000-1R-25 38 6000-1R-38
13 6000-1R-13 26 6000-1R-26 39 6000-1R-39
14 6000-1R-14 27 6000-1R-27 40 6000-1R-40

HEADER PART NO: 6000-2R

6000 x9

Pin PARD NO Pin PARD NO Pin PARD NO
2 6000-2R-2 15 6000-2R-15 28 6000-2R-28
3 6000-2R-3 16 6000-2R-16 29 6000-2R-29
4 6000-2R-4 17 6000-2R-17 30 6000-2R-30
5 6000-2R-5 18 6000-2R-18 31 6000-2R-31
6 6000-2R-6 19 6000-2R-19 32 6000-2R-32
7 6000-2R-7 20 6000-2R-20 33 6000-2R-33
8 6000-2R-8 21 6000-2R-21 34 6000-2R-34
9 6000-2R-9 22 6000-2R-22 35 6000-2R-35
10 6000-2R-10 23 6000-2R-23 36 6000-2R-36
11 6000-2R-11 24 6000-2R-24 37 6000-2R-37
12 6000-2R-12 25 6000-2R-25 38 6000-2R-38
13 6000-2R-13 26 6000-2R-26 39 6000-2R-39
14 6000-2R-14 27 6000-2R-27 40 6000-2R-40

Specification

  • Current Rating: 3Amp

  • Insulation Resistance: 5000M Ω Min.

  • Dielectric Withstanding: 600V AC

  • Contact Resistance: 20m Ω Max.

  • Operating Temperature: -40°C to +105°C

  • Max Process Temp:

    • 230°C for 30~60 sec.

    • 260°C for 10 seconds

Materials (UL 94V-0)

  • Contact Material: Brass

  • Contact Plating: Gold/Tin over Nickel

  • Insulation Material: Glass Filled Polyester

Ordering Information

6000 AACON Product Series

6000-1R/2R-XX-XX

XX — No Of Pins Per Row

  • 02~40 Single

  • 02~40 Dual

XX — Contact Plating

  • 6000-1R/2R-T-2：Tin

  • 6000-1R/2R-G：G/F

    • 6000-1R/2R-G10：G10U”

    • 6000-1R/2R-G30：G30U”
