PART NO.5996S

PART NO.5996S

1.27 & 1.27X2.54mm (0.05X0.1″) Pin Header (Straight，Thru-Hole)

分類: 1~1.27 pitch, Connector

1.27X1.27mm
Pin Header (Straight, Thru-Hole)HEADER PART NO:5996S

Features & Benefits

Smaller centers allow higher density
packaging

Choice of square or round posts

Notches for easy break-off

Standoffs facilitate post soldering clean

Also, we accept different various Type
of specifications of Pin Header

Specification
Current Rating : 1Amp
Insulation : 5000MΩ Min.
Dielectric Withstanding :600VAC
Contact Resistance : 20mΩ Max.
Operating Temperature : – 40℃ to +105℃

Materials (UL 94V-0)
Contact Material: Phosphor Bronze
Contact Plating: Gold/Tin over Nickel
Insulation Material: Glass Filled Polyester

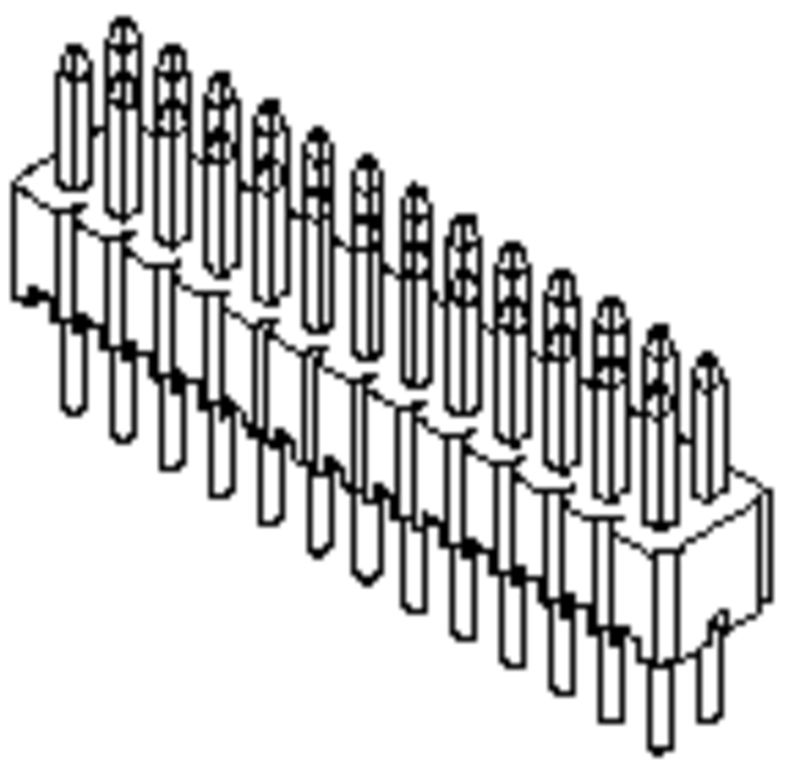

5996 2

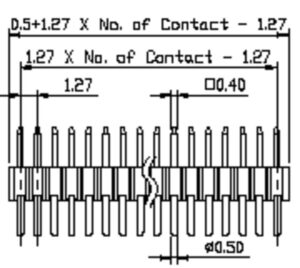

5996 3

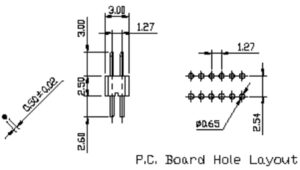

5996 4

PIN	TIN PLATING	GOLD PLATING
4	T-5996-4	G-5996-4
6	T-5996-6	G-5996-6
8	T-5996-8	G-5996-8
10	T-5996-10	G-5996-10
12	T-5996-12	G-5996-12
14	T-5996-14	G-5996-14
16	T-5996-16	G-5996-16
18	T-5996-18	G-5996-18
20	T-5996-20	G-5996-20
22	T-5996-22	G-5996-22
24	T-5996-24	G-5996-24
26	T-5996-26	G-5996-26
28	T-5996-28	G-5996-28
30	T-5996-30	G-5996-30
32	T-5996-32	G-5996-32
34	T-5996-34	G-5996-34
36	T-5996-36	G-5996-36
38	T-5996-38	G-5996-38
40	T-5996-40	G-5996-40
42	T-5996-42	G-5996-42
44	T-5996-44	G-5996-44
