PART NO.5994S

PART NO.5994S

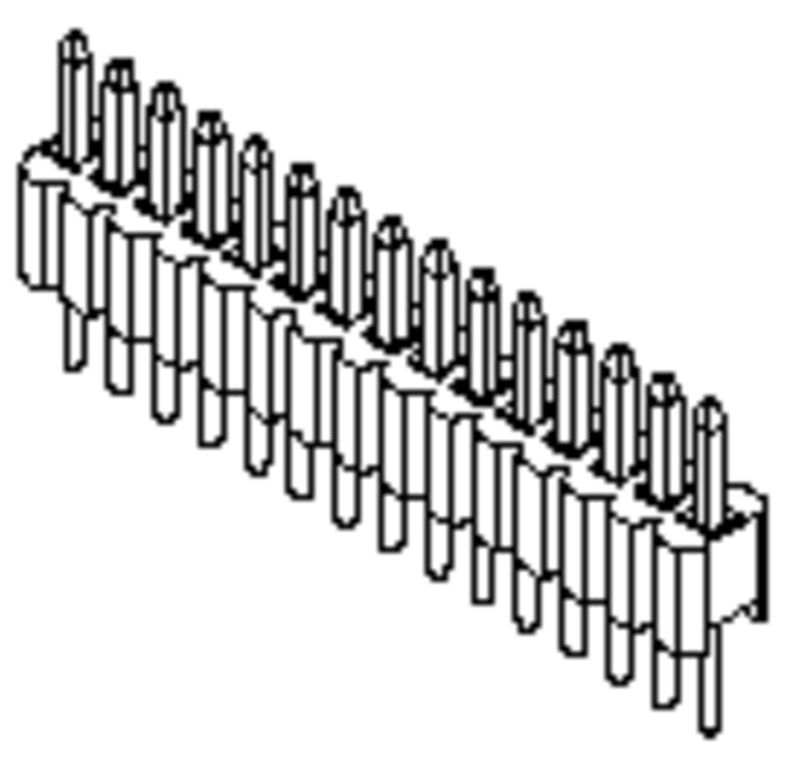

1.27 & 1.27X2.54mm (0.05X0.1″) Pin Header (Straight，Thru-Hole)

分類: 1~1.27 pitch, 其他連接器

1.27×2.54mm
Pin Header (Straight, Thru-Hole)HEADER PART NO:5994SFeatures & Benefits

The series are ideal for board
stacking applications

Choice of two terminal lengths

Notches for easy break-off

Standoffs facilitate post soldering
clean

Also, we accept different various
Type of specifications of pin
Header

Specification
Current Rating : 1Amp
Insulation : 5000MΩ Min.
Dielectric Withstanding :600VAC
Contact Resistance : 20mΩ Max.
Operating Temperature : – 40℃ to +105℃

Materials (UL 94V-0)
Contact Material: Phosphor Bronze
Contact Plating: Gold/Tin over Nickel
Insulation Material: Glass Filled Polyester

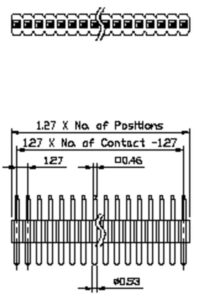

5994 2

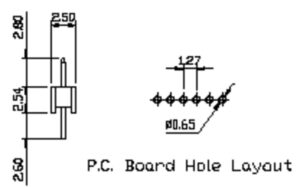

5994 3

PIN	TIN PLATING	GOLD PLATING
2	T-5994-2	G-5994-2
3	T-5994-3	G-5994-3
4	T-5994-4	G-5994-4
5	T-5994-5	G-5994-5
6	T-5994-6	G-5994-6
7	T-5994-7	G-5994-7
8	T-5994-8	G-5994-8
9	T-5994-9	G-5994-9
10	T-5994-10	G-5994-10
11	T-5994-11	G-5994-11
12	T-5994-12	G-5994-12
13	T-5994-13	G-5994-13
14	T-5994-14	G-5994-14
15	T-5994-15	G-5994-15
16	T-5994-16	G-5994-16
17	T-5994-17	G-5994-17
18	T-5994-18	G-5994-18
19	T-5994-19	G-5994-19
20	T-5994-20	G-5994-20
21	T-5994-21	G-5994-21
22	T-5994-22	G-5994-22
23	T-5994-23	G-5994-23
24	T-5994-24	G-5994-24
25	T-5994-25	G-5994-25
26	T-5994-26	G-5994-26
27	T-5994-27	G-5994-27
28	T-5994-28	G-5994-28
29	T-5994-29	G-5994-29
30	T-5994-30	G-5994-30
31	T-5994-31	G-5994-31
32	T-5994-32	G-5994-32
33	T-5994-33	G-5994-33
34	T-5994-34	G-5994-34
35	T-5994-35	G-5994-35
36	T-5994-36	G-5994-36
37	T-5994-37	G-5994-37
38	T-5994-38	G-5994-38
39	T-5994-39	G-5994-39
40	T-5994-40	G-5994-40
