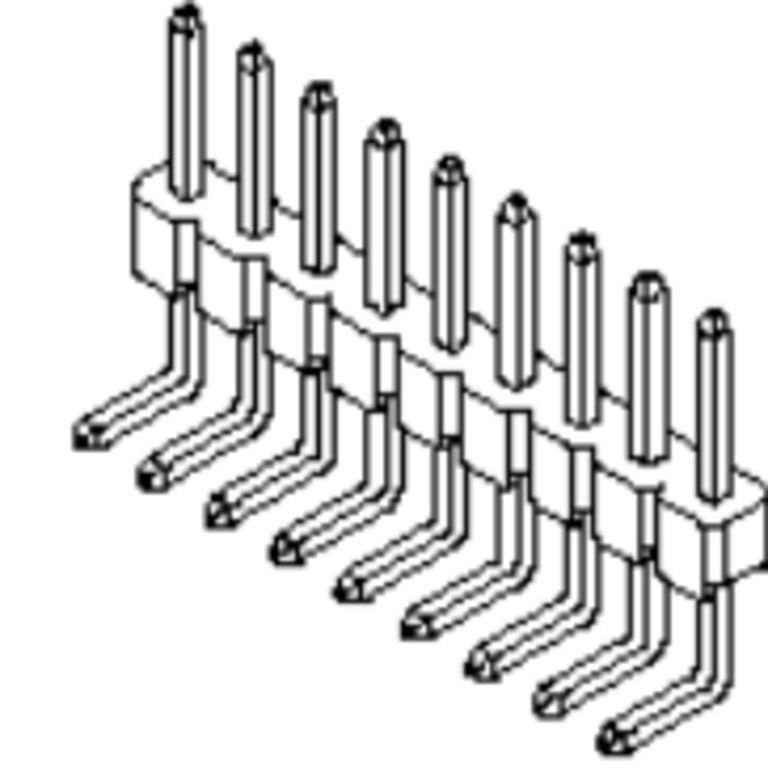

Features & Benefits
-
Side and stackable on unbroken edges
-
Available in single, dual, and triple row
-
Notches for easy break-off
-
Standoffs facilitate post soldering clean
-
Also, we accept different various type of specifications of Pin Header

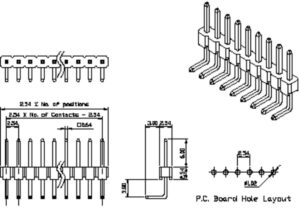

Specification
-
Current Rating: 3Amp
-
Insulation Resistance: 5000MΩ Min
-
Dielectric Withstanding: 600V AC
-
Contact Resistance: 20mΩ Max
-
Operating Temperature: -40°C to +105°C
Materials (UL 94V-0)
-
Contact Material: Brass
-
Contact Plating: Gold/Tin over Nickel
-
Insulation Material: Glass Filled Polyester
| Pin | PARD NO. | Pin | PARD NO. | Pin | PARD NO. | Pin | PARD NO. |
|---|---|---|---|---|---|---|---|
| 1 | 5012R-1 | 11 | 5012R-11 | 21 | 5012R-21 | 31 | 5012R-31 |
| 2 | 5012R-2 | 12 | 5012R-12 | 22 | 5012R-22 | 32 | 5012R-32 |
| 3 | 5012R-3 | 13 | 5012R-13 | 23 | 5012R-23 | 33 | 5012R-33 |
| 4 | 5012R-4 | 14 | 5012R-14 | 24 | 5012R-24 | 34 | 5012R-34 |
| 5 | 5012R-5 | 15 | 5012R-15 | 25 | 5012R-25 | 35 | 5012R-35 |
| 6 | 5012R-6 | 16 | 5012R-16 | 26 | 5012R-26 | 36 | 5012R-36 |
| 7 | 5012R-7 | 17 | 5012R-17 | 27 | 5012R-27 | 37 | 5012R-37 |
| 8 | 5012R-8 | 18 | 5012R-18 | 28 | 5012R-28 | 38 | 5012R-38 |
| 9 | 5012R-9 | 19 | 5012R-19 | 29 | 5012R-29 | 39 | 5012R-39 |
| 10 | 5012R-10 | 20 | 5012R-20 | 30 | 5012R-30 | 40 | 5012R-40 |
