SPECIFICATIONS
-
Current Rating: 5A
-
Voltage Rating: 250V AC, DC
-
Insulation Resistance: 1,000M Ω min
-
Withstand Voltage: 1,000V AC/minute
-
Temperature Range: -40°C~+105°C
-
Tolerance: ±0.2

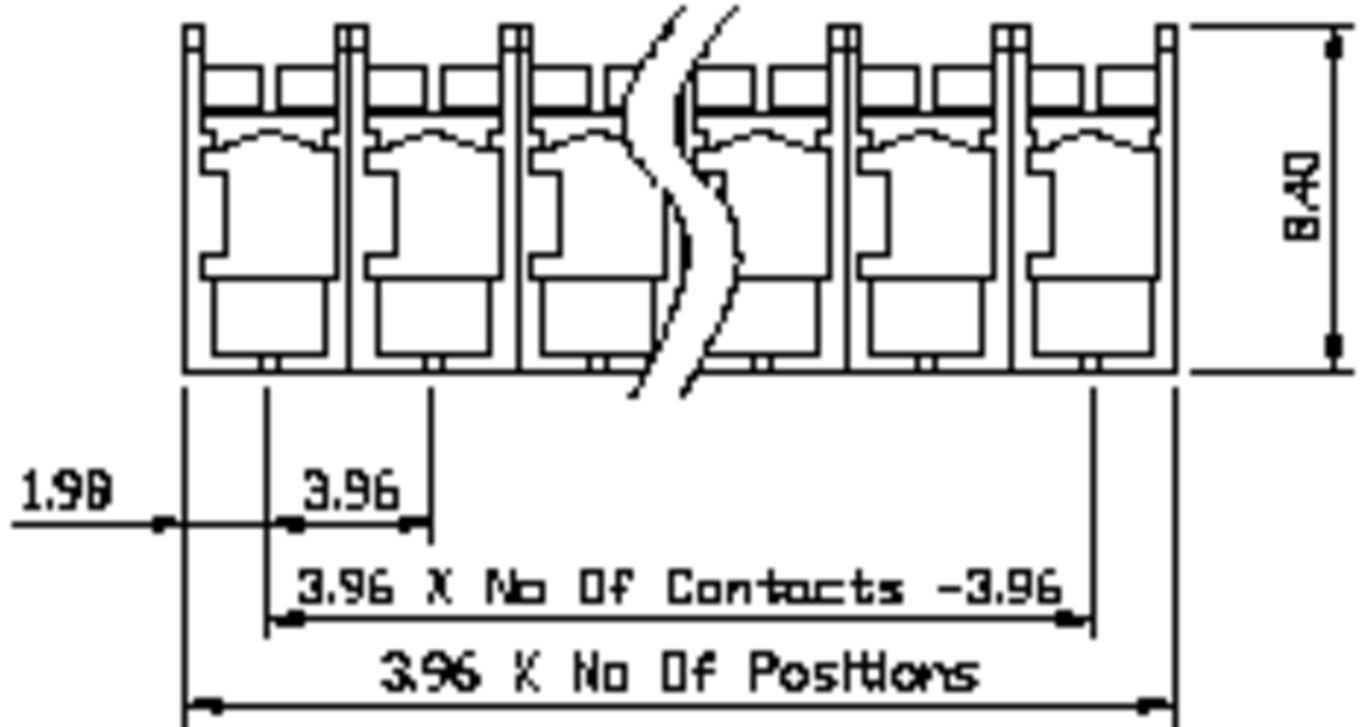

3.96mm
■ CONNECTOR PART NO: 3960/3980
Material: Nylon 66, UL94V-2
Pitch: 3.96mm
Material: Phos. Bronze C5159
Plating:
- Tin (Part No: 3960)
- Gold (Part No: 3980)
Wire Range: AWG 16–24 Ribbon Cable or Electronic Cable
Current Rating: 5A
Voltage Rating: 250V AC, DC
Insulation Resistance: 1,000M Ω min
Withstand Voltage: 1,000V AC/minute
Temperature Range: -40°C~+105°C
Tolerance: ±0.2
