FEATURES
-
5.5mm high after mounting and 3.8mm wide for compact mounting on printed circuit boards
- Easy and secure mounting on printed circuit boards
SPECIFICATIONS
-
Current Rating: 2A AC, DC
-
Temperature Range: -25℃ ~ +85℃
-
Insulation Resistance: 1,000MΩ min
-
Withstand Voltage: 800V / minute

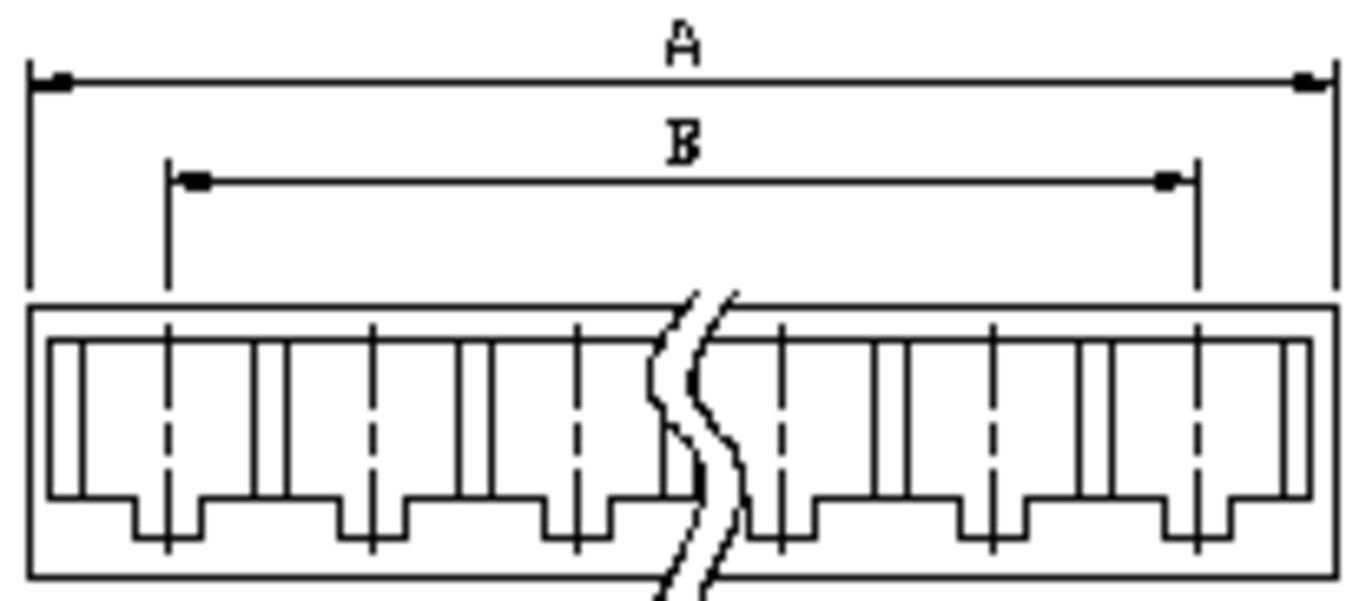

| CIRCUITS | PART NO. | A (mm) | B (mm) | CIRCUITS | PART NO. | A (mm) | B (mm) |
|---|---|---|---|---|---|---|---|
| 2 | 3262H-02 | 2.5 | 6.5 | 9 | 3262H-09 | 20.0 | 24.0 |
| 3 | 3262H-03 | 5.0 | 9.0 | 10 | 3262H-10 | 22.5 | 26.5 |
| 4 | 3262H-04 | 7.5 | 11.5 | 11 | 3262H-11 | 25.0 | 29.0 |
| 5 | 3262H-05 | 10.0 | 14.0 | 12 | 3262H-12 | 27.5 | 31.5 |
| 6 | 3262H-06 | 12.5 | 16.5 | 13 | 3262H-13 | 30.0 | 34.0 |
| 7 | 3262H-07 | 15.0 | 19.0 | 14 | 3262H-14 | 32.5 | 36.5 |
| 8 | 3262H-08 | 17.5 | 21.5 | – | – | – | – |
