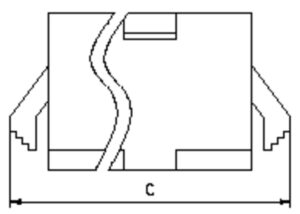

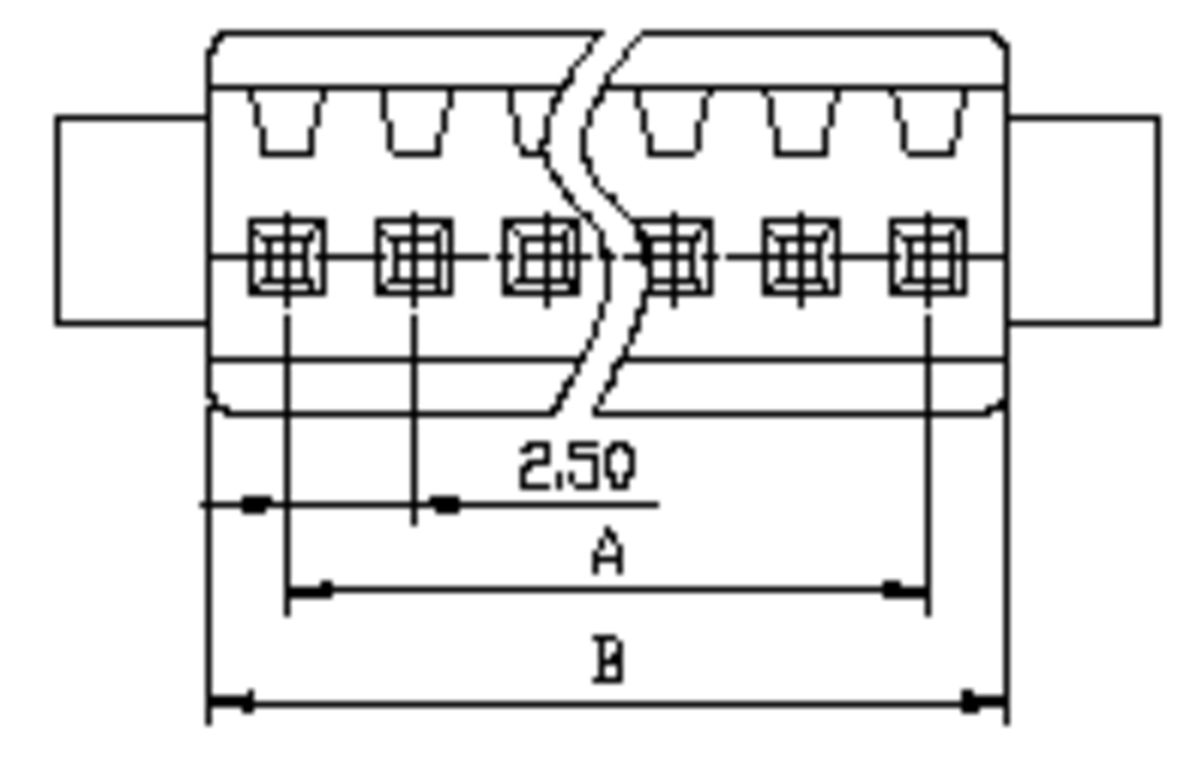

| CIRCUITS | PART NO. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 2 | 2516H-02 | 2.5 | 5.5 | 11.5 |
| 3 | 2516H-03 | 5.0 | 8.0 | 14.0 |
| 4 | 2516H-04 | 7.5 | 10.5 | 16.5 |
| 5 | 2516H-05 | 10.0 | 13.0 | 19.0 |
| 6 | 2516H-06 | 12.5 | 15.5 | 21.5 |
| 7 | 2516H-07 | 15.0 | 18.0 | 24.0 |
| 8 | 2516H-08 | 17.5 | 20.5 | 26.5 |
| 9 | 2516H-09 | 20.0 | 23.0 | 29.0 |
| 10 | 2516H-10 | 22.5 | 25.5 | 31.5 |
| 11 | 2516H-11 | 25.0 | 28.0 | 34.0 |
| 12 | 2516H-12 | 27.5 | 30.5 | 36.5 |
