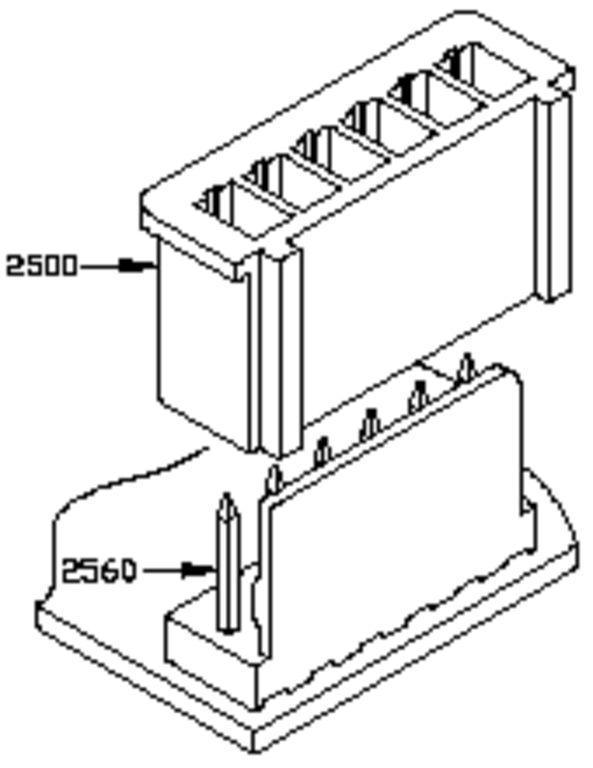

SPECIFICATIONS
-
Voltage Rating: 250V AC, DC
-
Current Rating: 3A AC, DC
-
Withstand Voltage: 1,000V AC / minute
-
Insulation Resistance: 1,000MΩ min
-
Temperature Range: -25℃ ~ +85℃
-
Contact Resistance:
-
初始值：10mΩ max
-
環境測試後：20mΩ max
-
-
Applicable P.C.B. Thickness: 0.8～1.6mm

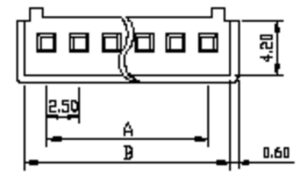

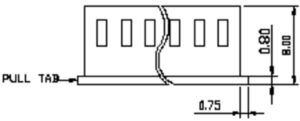

| CIRCUITS | PART NO. | A (mm) | B (mm) |
|---|---|---|---|
| 2 | 2500H-02 | 2.5 | 7.0 |
| 3 | 2500H-03 | 5.0 | 8.5 |
| 4 | 2500H-04 | 7.5 | 11.0 |
| 5 | 2500H-05 | 10.0 | 13.5 |
| 6 | 2500H-06 | 12.5 | 16.0 |
| 7 | 2500H-07 | 15.0 | 18.5 |
| 8 | 2500H-08 | 17.5 | 21.0 |
| 9 | 2500H-09 | 20.0 | 23.5 |
| 10 | 2500H-10 | 22.5 | 26.0 |
| 11 | 2500H-11 | 25.0 | 28.5 |
| 12 | 2500H-12 | 27.5 | 31.0 |
| 13 | 2500H-13 | 30.0 | 33.5 |
| 14 | 2500H-14 | 32.5 | 36.0 |
| 15 | 2500H-15 | 35.0 | 38.5 |
| 16 | 2500H-16 | 37.5 | 41.0 |
| 17 | 2500H-17 | 40.0 | 43.5 |
| 18 | 2500H-18 | 42.5 | 46.0 |
| 19 | 2500H-19 | 45.0 | 48.5 |
| 20 | 2500H-20 | 47.5 | 51.0 |
