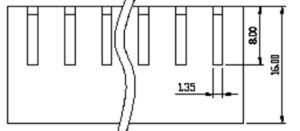

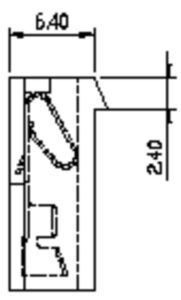

5.08mm Center Connector
2430 Housing Series
HOUSING PART NO: 2430H
Material: Nylon 66, UL 94V-2
Pitch: 5.08mm
Poles: 2~15
Accepts Terminal: 3506BS-2
Accepts Header: 2435WS / 2436WR / 2437WS / 2438WR

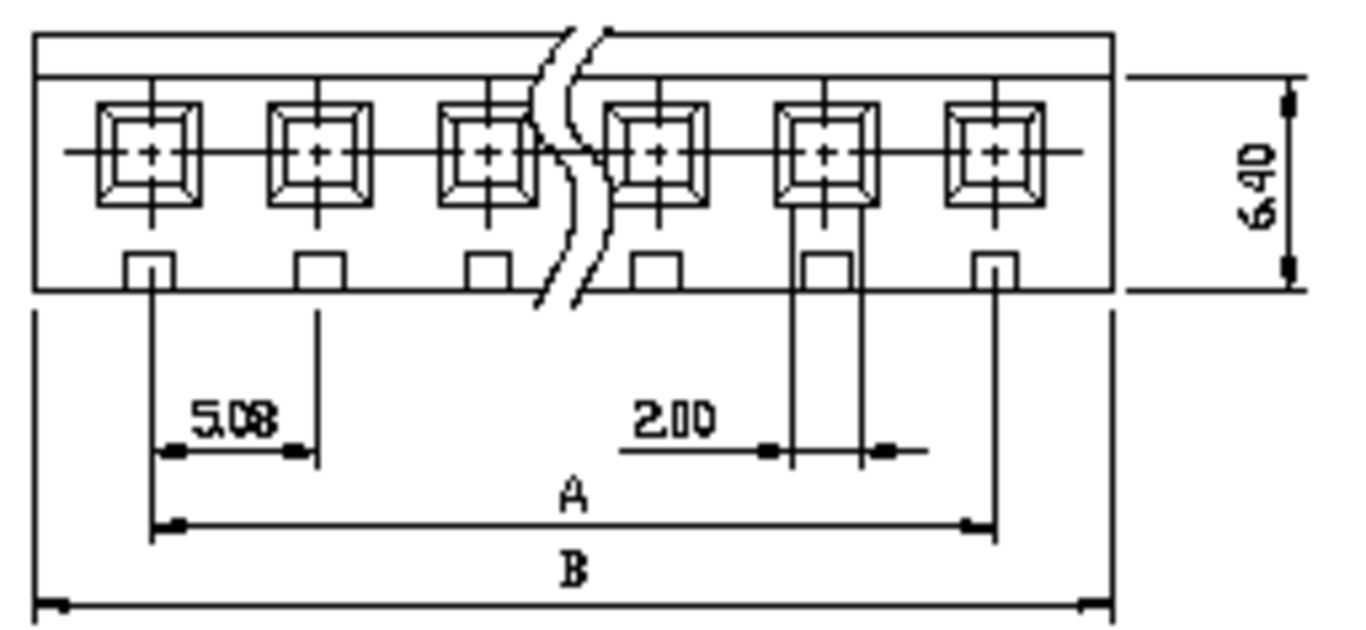

| Circuits | Part No. | A (mm) | B (mm) |
|---|---|---|---|
| 2 | 2430H-02 | 5.08 | 10.16 |
| 3 | 2430H-03 | 10.16 | 15.24 |
| 4 | 2430H-04 | 15.24 | 20.32 |
| 5 | 2430H-05 | 20.32 | 25.40 |
| 6 | 2430H-06 | 25.40 | 30.48 |
| 7 | 2430H-07 | 30.48 | 35.56 |
| 8 | 2430H-08 | 35.56 | 40.64 |
| 9 | 2430H-09 | 40.64 | 45.72 |
| 10 | 2430H-10 | 45.72 | 50.80 |
| 11 | 2430H-11 | 50.80 | 55.88 |
| 12 | 2430H-12 | 55.88 | 60.96 |
| 13 | 2430H-13 | 60.96 | 66.04 |
| 14 | 2430H-14 | 66.04 | 71.12 |
| 15 | 2430H-15 | 71.12 | 76.20 |
