✅ Features & Benefits
-
Available with optional ramp
-
Accepts 1.14mm square pins
-
Use polarizing key or peg
-
Available with voided circuits in various locations – Contact factory
✅ Specifications
-
Rated Voltage: 250V AC, DC
-
Rated Current: 7A
-
Withstand Voltage: 1,500V AC/minute
-
Insulation Resistance: 1,000M Ω min
-
Temperature Range: -25° ~ 120°C
-
Applicable P.C.B. Thickness: 1.6mm
-
Applicable P.C.B. Hole dia: Ø1.75 ± 0.05

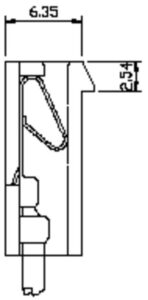

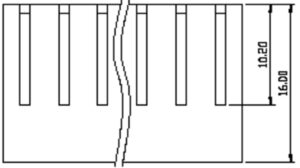

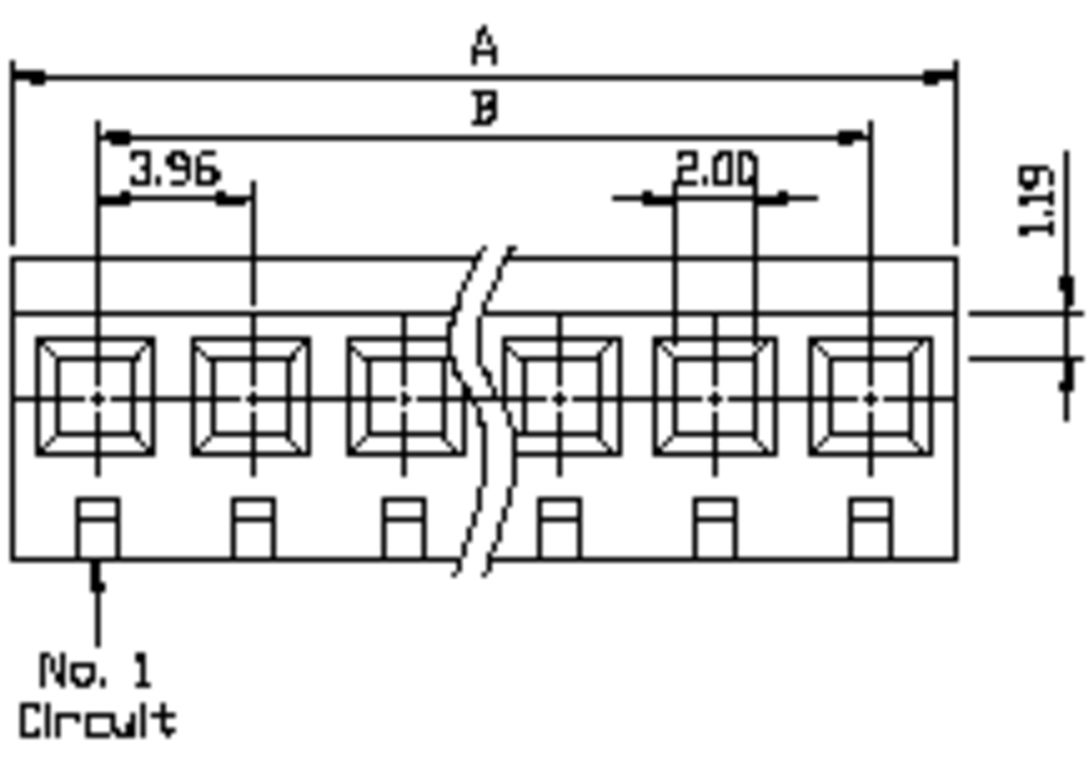

| Circuits | Part No. | A (mm) | B (mm) | Circuits | Part No. | A (mm) | B (mm) |
|---|---|---|---|---|---|---|---|
| 2 | 2400H-02 | 7.92 | 3.96 | 12 | 2400H-12 | 47.52 | 43.56 |
| 3 | 2400H-03 | 11.88 | 7.92 | 13 | 2400H-13 | 51.48 | 47.52 |
| 4 | 2400H-04 | 15.84 | 11.88 | 14 | 2400H-14 | 55.44 | 51.48 |
| 5 | 2400H-05 | 19.80 | 15.84 | 15 | 2400H-15 | 59.40 | 55.44 |
| 6 | 2400H-06 | 23.76 | 19.80 | 16 | 2400H-16 | 63.36 | 59.40 |
| 7 | 2400H-07 | 27.72 | 23.76 | 17 | 2400H-17 | 67.32 | 63.36 |
| 8 | 2400H-08 | 31.68 | 27.72 | 18 | 2400H-18 | 71.28 | 67.32 |
| 9 | 2400H-09 | 35.64 | 31.68 | 19 | 2400H-19 | 75.24 | 71.28 |
| 10 | 2400H-10 | 39.60 | 35.64 | 20 | 2400H-20 | 79.20 | 75.24 |
| 11 | 2400H-11 | 43.56 | 39.60 |
