SPECIFICATIONS
-
Current Rating： 5A
-
Voltage Rating： 250V AC, DC
-
Temperature Range： -25°C ~ +85°C
-
Contact Resistance： Initial value / 10mΩ max
After environmental testing / 20mΩ -
Withstand Voltage： 1500V AC/minute
-
Insulation Resistance： 1000mΩ/min
-
Applicable P.C.B. Thickness： 1.6mm

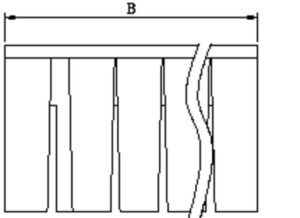

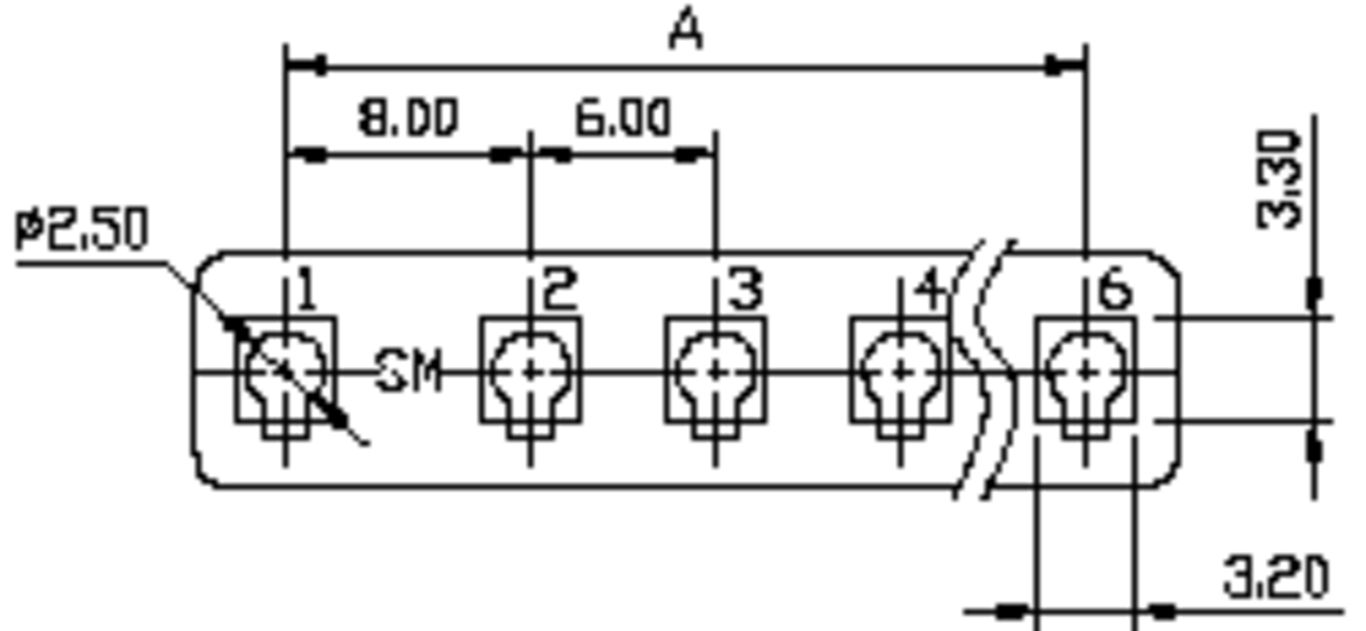

| CIRCUITS | PART NO. | DIMENSION A | DIMENSION B | Q’ty Bag |
|---|---|---|---|---|
| 3 | 2366H 3P | 14.0 mm | 19.8 mm | 500 |
| 4 | 2366H 4P | 20.0 mm | 25.8 mm | 500 |
| 5 | 2.36H 5P | 26.0 mm | 31.8 mm | 500 |
| 6 | 2.36H 6P | 32.0 mm | 37.7 mm | 500 |
