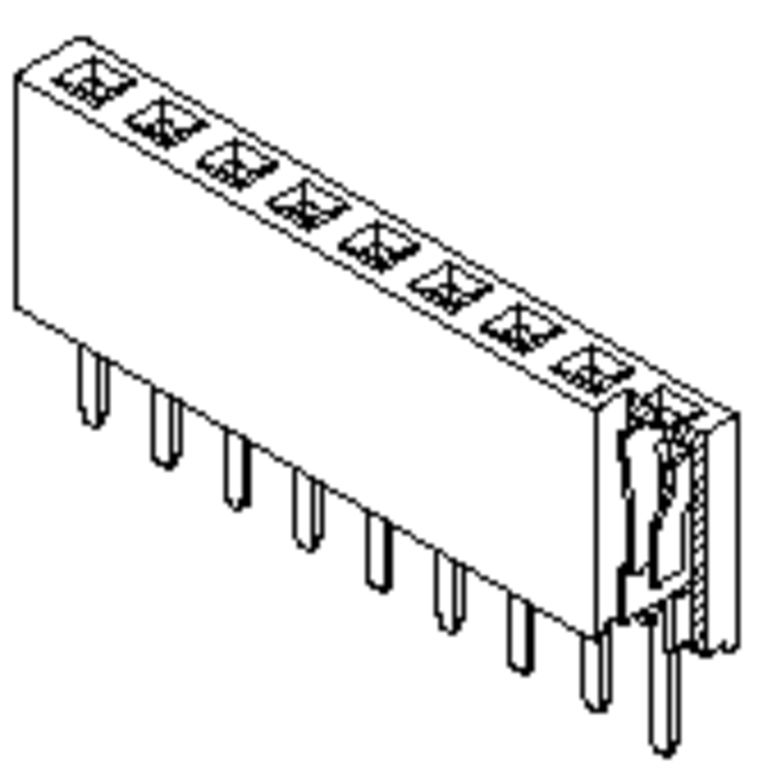

■ CONNECTOR PART NO: 2253S
Pitch: 2.54mm
Poles: 2–40
Material:
• Contact Material: Phosphor Bronze
• Contact Plating: Gold/Tin over Nickel
• Insulation Material: Glass Filled Polyester UL 94V-0

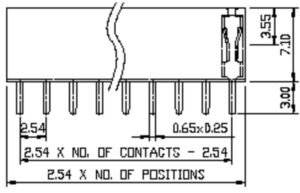

For low profile: 7.1mm applications
High quality dual beam phosphor bronze contacts
Standoffs facilitate post soldering clean
Mate with 2.54mm pin headers
Current Range: 3Amp
Insulation Resistance: 5000M Ω Min.
Dielectric Withstanding: 600V AC
Contact Resistance: 20mΩ Max.
Operating Temperature: -40°C to +105°C
|
Ordering Information |
|||
| 2253S-XX-XX | |||
|
|
No. of Pins per Row | ||
| 02~30: Single / Dual | |||
|
XX |
03~30: Triple | ||
| Contact Plating | |||
|
XX |
T: Tin | ||
| G:Gold Flash | |||
| G10:G10U” | |||
| G30:G30U” | |||
