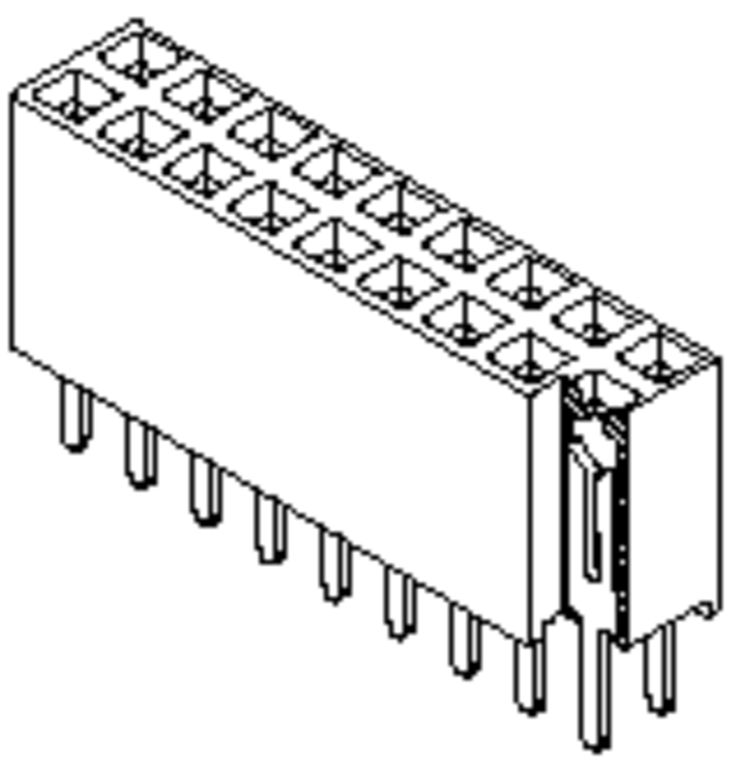

■ HEADER PART NO: 2251VD
Pitch: 2.54mm
Poles: 2–30 (straight dual row)
Material:
• Contact Material: Phosphor Bronze
• Contact Plating: Gold/Tin over Nickel
• Insulation Material: Glass Filled Polyester
• P.B.T. UL 94V-0

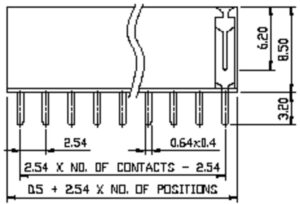

Standard Profile: 8.5mm
Low cost tuning-fork contact design
Standoffs facilitate post soldering clean
Current Range: 3Amp
Insulation Resistance: 5000M Ω Min.
Dielectric Withstanding: 600V AC
Contact Resistance: 20mΩ Max.
Operating Temperature: -40°C to +105°C
|
Ordering Information |
|||
| 2251VD – XX – XX | |||
|
|
No. of Pins per Row | ||
| ∣ | 02~30: Single / Dual | ||
| XX |
∣ |
03~30: Triple | |
| Contact Plating | |||
| XX |
∣ |
T: Tin | |
| ∣ | G:Gold Flash | ||
| ∣ | G10:G10U” | ||
| ∣ | G30:G30U” | ||
