SPECIFICATIONS
-
Current Rating: 2A AC, DC
-
Voltage Rating: 250V AC, DC
-
Temperature Range: -25℃ ~ +85℃（含溫升）
-
Insulation Resistance: 1000MΩ min
-
Withstand Voltage: 800V AC / minute
-
Applicable P.C.B. Thickness: 1.6mm

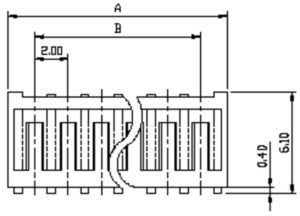

| CIRCUITS | PART NO. | A (mm) | B (mm) |
|---|---|---|---|
| 2 | 2003H-02 | 5.20 | 2.00 |
| 3 | 2003H-03 | 7.20 | 4.00 |
| 4 | 2003H-04 | 9.20 | 6.00 |
| 5 | 2003H-05 | 11.20 | 8.00 |
| 6 | 2003H-06 | 13.20 | 10.00 |
| 7 | 2003H-07 | 15.20 | 12.00 |
| 8 | 2003H-08 | 17.20 | 14.00 |
| 9 | 2003H-09 | 19.20 | 16.00 |
| 10 | 2003H-10 | 21.20 | 18.00 |
| 11 | 2003H-11 | 23.20 | 20.00 |
| 12 | 2003H-12 | 25.20 | 22.00 |
| 13 | 2003H-13 | 27.20 | 24.00 |
| 14 | 2003H-14 | 29.20 | 26.00 |
| 15 | 2003H-15 | 31.20 | 28.00 |
| 16 | 2003H-16 | 33.20 | 30.00 |
