SPECIFICATIONS
-
Voltage Rating: 250V AC, DC
-
Current Rating: 2A
-
Withstand Voltage: 800V AC / minute
-
Insulation Resistance: 1000MΩ min
-
Temperature Range: -25℃ ~ +85℃
-
Applicable P.C. Board Thickness: 0.8～1.6mm
-
Contact Resistance:
-
初始值：10mΩ max
-
環境測試後：20mΩ max
-

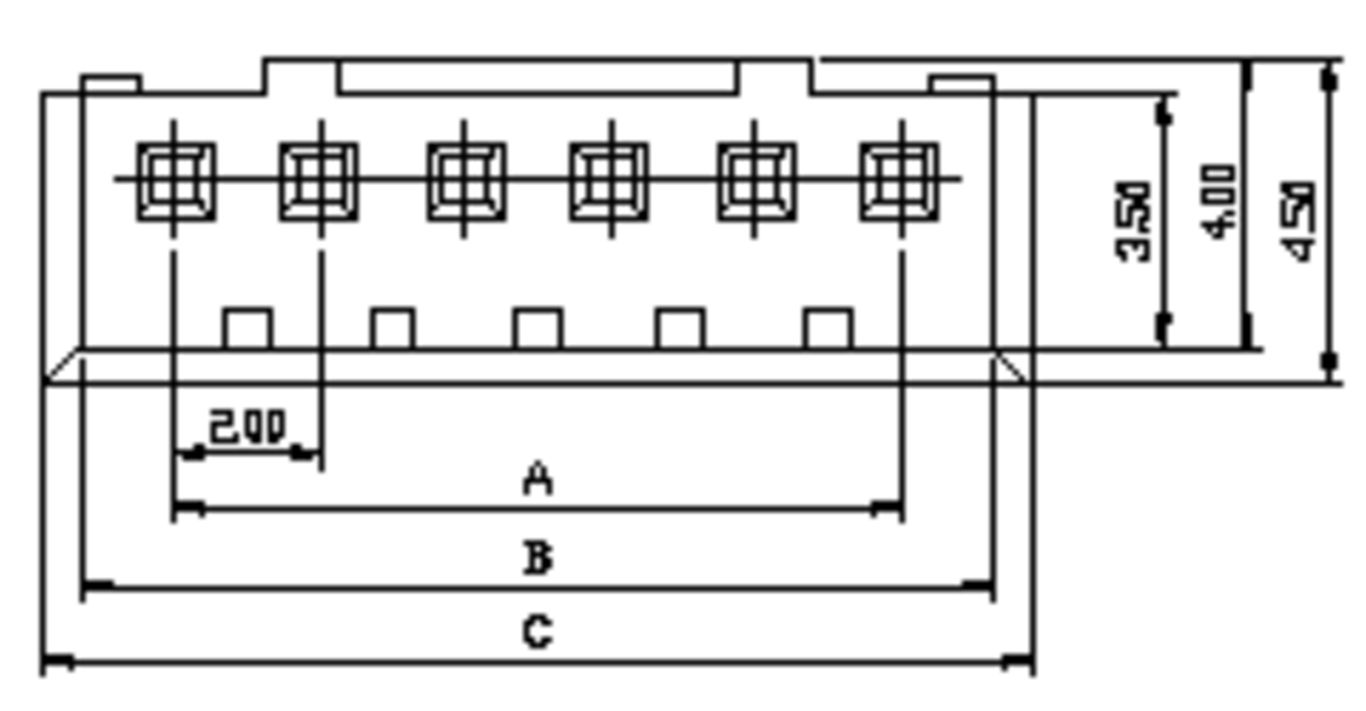

| CIRCUITS | PART NO. | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| 2 | 2000H-02 | 2.00 | 4.50 | 5.60 |
| 3 | 2000H-03 | 4.00 | 6.50 | 7.60 |
| 4 | 2000H-04 | 6.00 | 8.50 | 9.60 |
| 5 | 2000H-05 | 8.00 | 10.50 | 11.60 |
| 6 | 2000H-06 | 10.00 | 12.50 | 13.60 |
| 7 | 2000H-07 | 12.00 | 14.50 | 15.60 |
| 8 | 2000H-08 | 14.00 | 16.50 | 17.60 |
| 9 | 2000H-09 | 16.00 | 18.50 | 19.60 |
| 10 | 2000H-10 | 18.00 | 20.50 | 21.60 |
| 11 | 2000H-11 | 20.00 | 22.50 | 23.60 |
| 12 | 2000H-12 | 22.00 | 24.50 | 25.60 |
| 13 | 2000H-13 | 24.00 | 26.50 | 27.60 |
| 14 | 2000H-14 | 26.00 | 28.50 | 29.60 |
| 15 | 2000H-15 | 28.00 | 30.50 | 31.60 |
