SPECIFICATIONS
-
Current Rating: 5A
-
Voltage Rating: 250V AC, DC
-
Temperature Range: -25°C ~ +85°C
-
Contact Resistance: Initial Value / 10mΩ max
After environmental testing: 20mΩ -
Withstand Voltage: 1,500V AC/minute
-
Insulation Resistance: 1,000mΩ / min
-
Applicable P.C.B. Thickness: 1.6mm

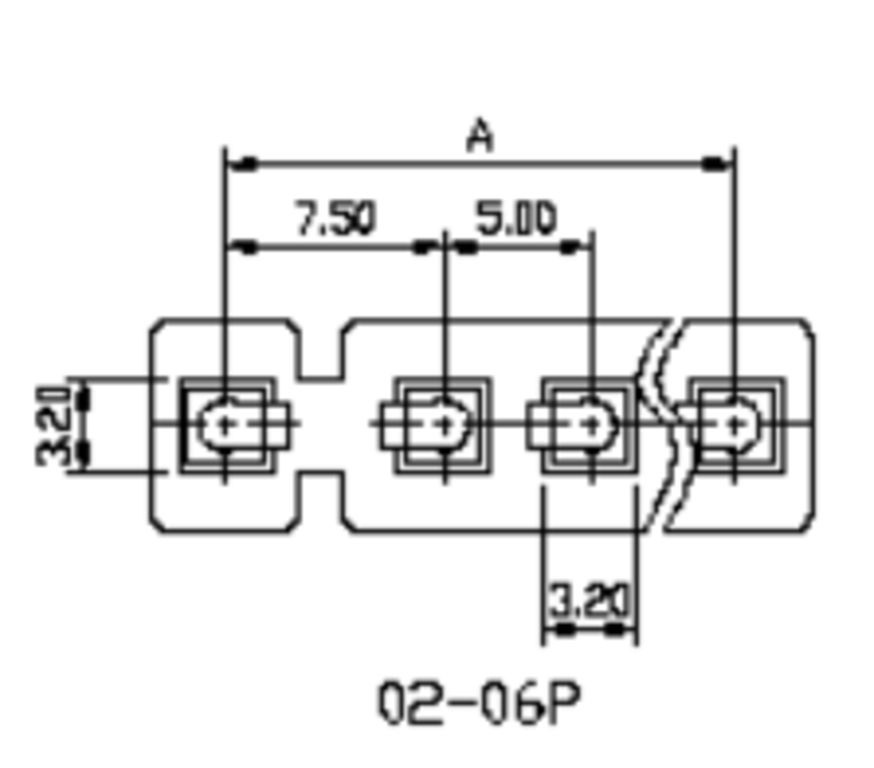

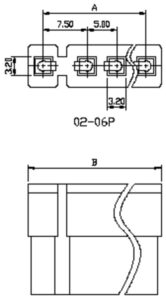

| CIRCUITS | PART NO. | DIMENSION A (mm) | DIMENSION B (mm) | Q’ty/bag |
|---|---|---|---|---|
| 1 | 1551H-01 | – | – | 1,000 |
| 2 | 1551H-02 | 7.50 | 12.50 | 1,000 |
| 3 | 1551H-03 | 12.50 | 17.50 | 1,000 |
| 4 | 1551H-04 | 17.50 | 22.50 | 1,000 |
| 5 | 1551H-05 | 22.50 | 27.50 | 500 |
| 6 | 1551H-06 | 27.50 | 32.50 | 500 |
