SPECIFICATIONS
-
Voltage Rating: 100V AC/DC
-
Current Rating: 1A AC/DC
-
Withstand Voltage: 800V AC/min
-
Insulation Resistance: 1000 mΩ min
-
Temperature Range: -25°C ~ +85°C
-
Applicable Wire: AWG #28~32
-
Contact Resistance: 20mΩ min

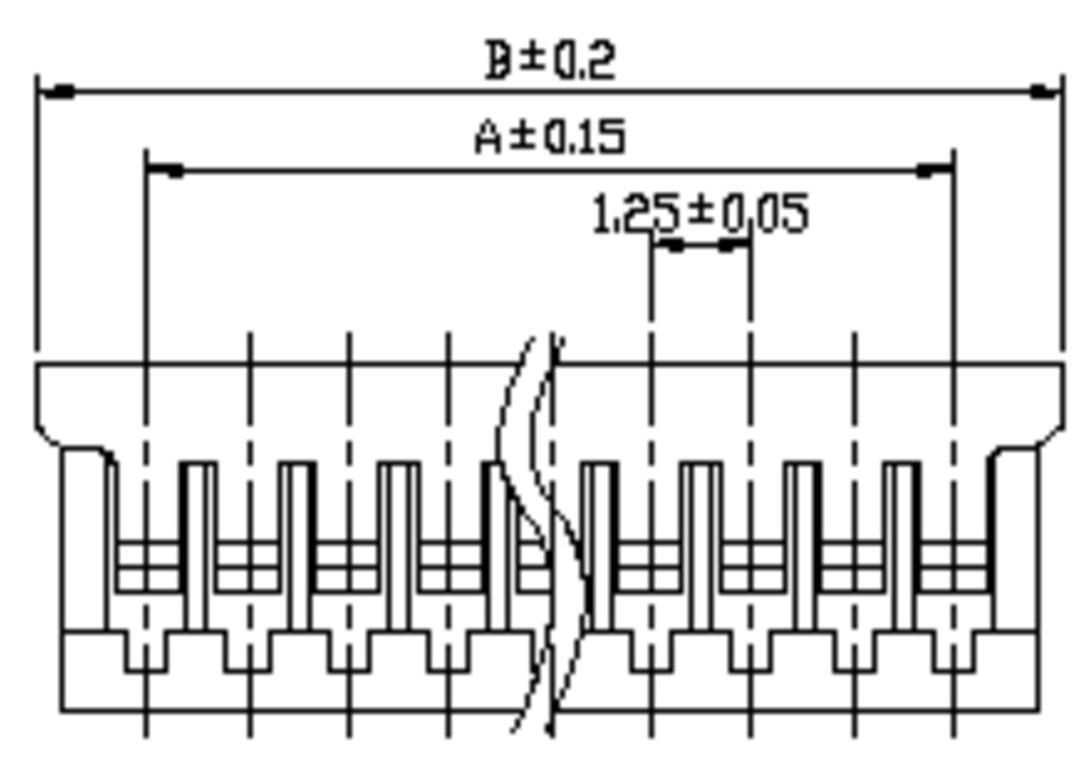

| CIRCUITS | PART NO. | A (mm) | B (mm) | CIRCUITS | PART NO. | A (mm) | B (mm) |
|---|---|---|---|---|---|---|---|
| 2 | 1255H-02 | 1.25 | 3.95 | 9 | 1255H-09 | 10.00 | 12.70 |
| 3 | 1255H-03 | 2.50 | 5.20 | 10 | 1255H-10 | 11.25 | 13.95 |
| 4 | 1255H-04 | 3.75 | 6.45 | 11 | 1255H-11 | 12.50 | 15.20 |
| 5 | 1255H-05 | 5.00 | 7.70 | 12 | 1255H-12 | 13.75 | 16.45 |
| 6 | 1255H-06 | 6.25 | 8.95 | 13 | 1255H-13 | 15.00 | 17.70 |
| 7 | 1255H-07 | 7.50 | 10.20 | 14 | 1255H-14 | 16.25 | 18.95 |
| 8 | 1255H-08 | 8.75 | 11.45 | 15 | 1255H-15 | 17.50 | 20.20 |
