Specification
-
Rated Voltage: 100V AC, DC
-
Rated Current: 1A
-
Withstand Voltage: 800V AC / minute
-
Insulation Resistance: 1,000MΩ min
-
Temperature Range: -25℃ ~ 85℃
-
Locking Window:
-
2、3 pin 為 1 個鎖固孔
-
超過 3 pin 為 2 個鎖固孔
-
1202 Series

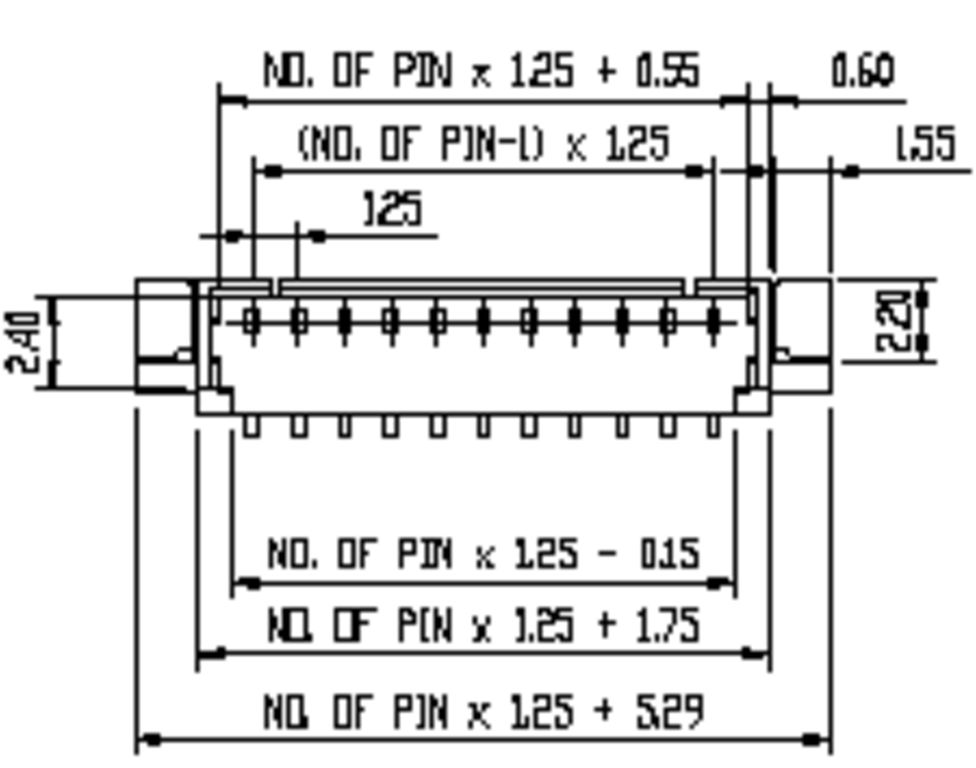

WAFER PART NO: 1207-SMT
Material:
Housing：高耐溫塑料 UL 94V-0
Pin：高強度磷青銅
Tab：高強度磷青銅
Plating: 錫/鉛鍍鎳
Pitch: 1.25mm
Poles: 2～15
Mates with: 1200H
Rated Voltage: 100V AC, DC
Rated Current: 1A
Withstand Voltage: 800V AC / minute
Insulation Resistance: 1,000MΩ min
Temperature Range: -25℃ ~ 85℃
Locking Window:
2、3 pin 為 1 個鎖固孔
超過 3 pin 為 2 個鎖固孔
